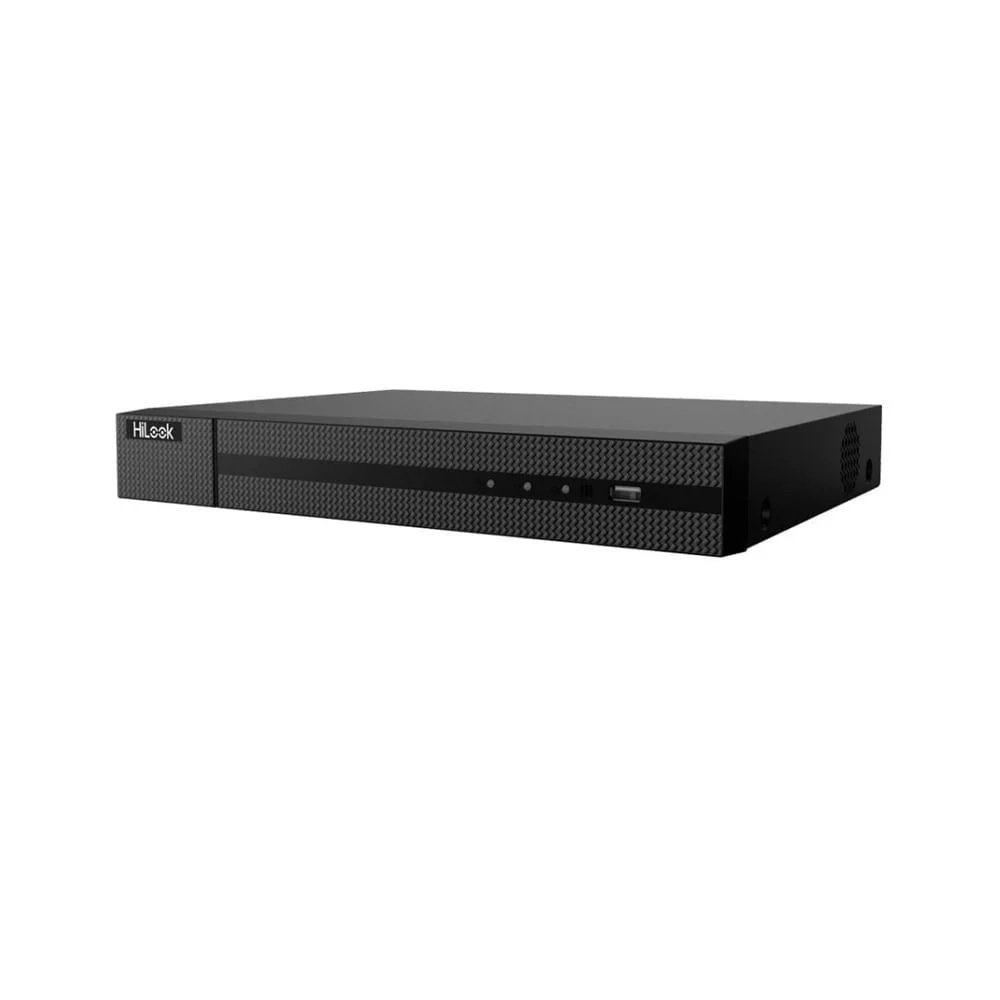

HiLook NVR-108MH-C/8P(B)

Contact us for Price

Genoapay
SKU: 1075 Categories: , , ,

Features :-

HiLook NVR-108MH-C/8P(B) 4K Mini 1U 8-Channel 8x PoE NVR (Network Video Recorder)

Features :-

  • 8CH IP Video Input
  • 80Mbps Incoming bandwidth support
  • Up to 8MP resolution recording
  • HDMI and VGA Output (independent outputs)
  • 8 independent PoE network interfaces
  • Supports decoding H.265+ / H.265 / H.264+ / H.264 multiple video formats
  • Up to 4-ch @ 1080p decoding capacity
  • 1 HDD for continuous video recording
  • Storage space effectively saved by 50% to 70% with the use of H.265+ decoding format
  • VCA detection alarm is supported
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency
  • Hik-Connect for easy network management

Specifications:

Video And Audio

  • IP Video Input: 8-ch ,Up to 8 MP resolution
  • Incoming Bandwidth: 80Mbps
  • Outgoing Bandwidth: 80Mbps
  • HDMI/VGA Output: HDMI:1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output, VGA:1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: Input 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

  • Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
  • Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback: 8-ch
  • Live View/Playback Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Decoding capability: 1-ch @ 8 MP / 4-ch @ 1080p

Network

  • Network Interface: 1x RJ-45 10/100Mbps self-adaptive Ethernet interface
  • Network Protocols: IPv6, HTTPS, UPnP, NTP, SADP, SMTP, PPPoE, DDNS, iSCSI, NFS
  • Remote Connection: 64

PoE

  • Interface: 8x RJ-45 10/100Mbps self-adaptive Ethernet interface
  • Max. Power: ≤75W
  • Supported Standard: IEEE 802.3 af/at

Hard Disk

  • SATA: 1 SATA interface
  • Capacity: Up to 6TB capacity for each disk

External Interface

  • USB Interface: 2 × USB 2.0

General

  • Power: ≤ 90 W
  • Power Supply: 48 VDC
  • Working Temperature: -10 °C to 45 °C (14 °F to 113 °F)
  • Working Humidity: 10 to 90 %
  • Consumption (Without Hard Disk): ≤ 10 W (without enabling PoE)
  • Dimensions (W × D × H): 265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
  • Weight (Without Hard Disk): ≤ 1 kg (2.2 lb)
